案例 20.8草的交互压弯进阶

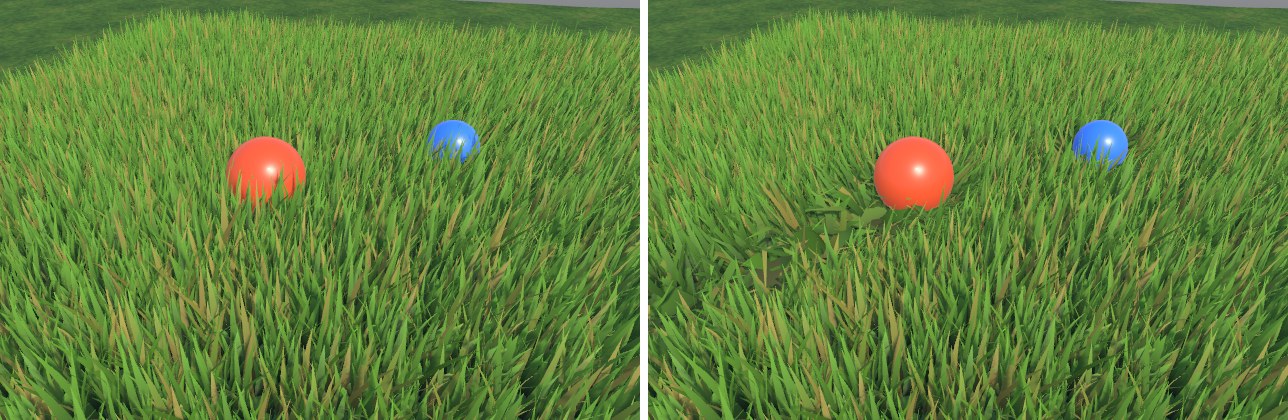

目标：角色或物体经过时，周围的草被推开、压低。
最简单而有效的做法是把“交互体”的位置和半径作为全局数组传给 Shader，每个草叶顶点计算自己到每个交互体的水平距离，在半径以内的就沿远离方向推开。全局变量不放进 UnityPerMaterial，由 Shader.SetGlobalVectorArray 设置，所有用到它的材质（草、花、灌木）都能读到。
Assets/Cookbook/Ch20/Grass.shader（节选：globals）
// 交互体：全局数组，xyz = 世界坐标，w = 影响半径。不放进 UnityPerMaterial，由 Shader.SetGlobal* 设置 float4 _Ch20Interactors[8]; float _Ch20InteractorCount;
Assets/Cookbook/Ch20/GrassRenderer.cs（节选：interactors）
void UploadInteractors() { int n = 0; if (interactors != null) foreach (var t in interactors) { if (t == null || n >= MaxInteractors) continue; var p = t.position; m_InteractorData[n++] = new Vector4(p.x, p.y, p.z, interactorRadius * t.lossyScale.x); } // 全局数组：所有用到它的材质都能读到（草、灌木、花……） Shader.SetGlobalVectorArray(s_Interactors, m_InteractorData); Shader.SetGlobalFloat(s_InteractorCount, n); }
// 案例 20.7–20.9：批量绘制草丛 + 上传交互体（网页版，对应 Ch20/GrassRenderer.cs）。 // C# 用 Graphics.RenderMeshInstanced 每 1023 个实例一批提交；WebGL2 没有这个 API， // 这里往场景里加一个“自定义绘制物体”：同一个草丛网格 + instanceCount，引擎用 drawElementsInstanced 一次画完， // 每实例矩阵和 _Variation 打包进一张 RGBA32F 贴图（Grass.glsl 里按 gl_InstanceID 读取）， // 主画面、阴影 Pass 都走引擎的普通流程（和 RenderParams 里的 shadowCastingMode / receiveShadows 一样）。 // // 实例数据在 C# 里由拍摄脚本 Ch20Shots.Grass() 调 SetInstances() 填入，不会被序列化导出， // 所以网页版按同样的参数（区域、间距、随机种子、筛选规则）重新生成： // - System.Random 按 .NET 源码逐位复刻，位置、旋转、缩放、颜色随机值与 Unity 一致； // - 地面高度直接从场景里的地形网格插值（等价于 C# 里的高度函数 h(x, z)）； // - 缩放用到的 Mathf.PerlinNoise 是近似实现（只影响 ±20% 的大小起伏）。 import { mat4 } from '../engine/math.js'; const DATA_WIDTH = 1024; // 与 Grass.glsl 的 GRASS_DATA_WIDTH 一致 const MAX_INTERACTORS = 8; // 各配图调用 Ch20Shots.Grass(s, h, area, spacing, accept, seed) 的参数 const SHOTS = { 'ch20-grass-field': { area: [-14, -8, 28, 34], spacing: 0.24 }, 'ch20-grass-interact': { area: [-6, -4, 12, 12], spacing: 0.16 }, 'ch20-grass-fade': { area: [-16, -6, 32, 40], spacing: 0.3 }, // 只在平缓、低于雪线的地方长草 'ch20-final': { area: [-16, -14, 30, 30], spacing: 0.26, accept: (x, z, h) => { const e = 0.3, y = h(x, z); const dx = (h(x + e, z) - h(x - e, z)) / (2 * e), dz = (h(x, z + e) - h(x, z - e)) / (2 * e); return dx * dx + dz * dz < 0.12 && y < 4 && y > -0.3; }, }, }; export default class GrassRenderer { constructor(engine, json, obj, scene) { this.engine = engine; this.obj = obj; this.scene = scene; const d = json.data || {}; this.d = d; this.castShadows = d.castShadows !== false; this.interactorRadius = d.interactorRadius ?? 1; // 导出数据里引用的 Transform 以 {component: 物体序号} 表示 this.interactors = (d.interactors || []).map((t) => (t && t.component !== undefined && t.component !== null ? scene.objects[t.component] : null)); } async init() { const E = this.engine, S = this.scene, d = this.d; const material = d.material && S.materialById(d.material.material); if (!material || !d.mesh || !d.mesh.mesh) return; const mesh = await E.assets.mesh(d.mesh.mesh); const { matrices, variation } = this.buildInstances(); this.setInstances(matrices, variation, mesh, material); } /// 设置所有实例：矩阵（每个 12 个数 = 前三行）+ 每实例一个 0..1 的随机值（Shader 里用来做颜色变化） setInstances(matrices, variation, mesh, material) { const n = variation.length; if (!n) return; const texels = n * 4, rows = Math.ceil(texels / DATA_WIDTH); const data = new Float32Array(DATA_WIDTH * rows * 4); const min = [Infinity, Infinity, Infinity], max = [-Infinity, -Infinity, -Infinity]; for (let i = 0; i < n; i++) { data.set(matrices.subarray(i * 12, i * 12 + 12), i * 16); data[i * 16 + 12] = variation[i]; const p = [matrices[i * 12 + 3], matrices[i * 12 + 7], matrices[i * 12 + 11]]; for (let k = 0; k < 3; k++) { min[k] = Math.min(min[k], p[k]); max[k] = Math.max(max[k], p[k]); } } const tex = this.engine.glc.texture2D(DATA_WIDTH, rows, 'RGBA32F', data, { mips: false, filter: 'Point', wrap: 'Clamp' }); // 外扩 1 米，留给草高和弯曲 const center = [0, 1, 2].map((k) => (min[k] + max[k]) * 0.5); const extents = [0, 1, 2].map((k) => (max[k] - min[k]) * 0.5 + 1); const o = this.obj; this.drawObj = { index: -1, name: o.name + ' (instanced)', active: true, layer: o.layer, json: o.json, matrix: mat4.identity(), invMatrix: mat4.identity(), flip: false, mesh, instanceCount: n, renderer: { enabled: true, materials: [material], castShadows: this.castShadows, shadowsOnly: false, receiveShadows: true, bounds: [center, extents], sortingOrder: 0, }, uniforms: { _GrassInstanceData: tex }, }; this.scene.renderers.push(this.drawObj); this.count = n; } // 每帧（C# 是每个相机开始渲染时）上传交互体：全局数组，所有用到它的材质都能读到 update() { if (this.drawObj) this.drawObj.active = this.obj.active !== false; const arr = new Float32Array(MAX_INTERACTORS * 4); let n = 0; for (const t of this.interactors) { if (!t || n >= MAX_INTERACTORS) continue; const m = t.matrix, s = (t.json.lossyScale || [1])[0]; arr.set([m[12], m[13], m[14], this.interactorRadius * s], n * 4); n++; } this.engine.setGlobal('_Ch20Interactors', arr); this.engine.setGlobal('_Ch20InteractorCount', n); } // ---------------- 复刻 Ch20Shots.Grass() 的实例生成 ---------------- buildInstances() { const cfg = SHOTS[this.scene.doc.id] || null; const h = this.terrainHeight(); let area, spacing, accept = null; if (cfg) { area = cfg.area; spacing = cfg.spacing; accept = cfg.accept || null; } else { // 不认识的场景：铺满地形 const b = this.terrain ? this.terrain.renderer.bounds : [[0, 0, 0], [5, 0, 5]]; area = [b[0][0] - b[1][0], b[0][2] - b[1][2], b[1][0] * 2, b[1][2] * 2]; spacing = 0.3; } const f = Math.fround; const rnd = new DotNetRandom(5); const R = () => f(rnd.nextDouble()); const mats = [], vars = []; const [ax, ay, aw, ah] = area.map(f); const sp = f(spacing); // C# 用 float 累加循环变量，次数要与之一致，所以全程用 Math.fround 模拟单精度 for (let z = ay; z < f(ay + ah); z = f(z + sp)) { for (let x = ax; x < f(ax + aw); x = f(x + sp)) { const px = f(x + f(f(R() - 0.5) * sp)); const pz = f(z + f(f(R() - 0.5) * sp)); if (accept && !accept(px, pz, h)) continue; const py = h(px, pz); const sc = lerp(0.75, 1.35, R()) * lerp(0.8, 1.2, fbm(px * 0.3, pz * 0.3, 2)); const yaw = (R() * 360 * Math.PI) / 180; // Matrix4x4.TRS(p, Euler(0, yaw, 0), sc) 的前三行（Unity 左手系绕 Y 旋转） const c = Math.cos(yaw) * sc, s = Math.sin(yaw) * sc; mats.push(c, 0, s, px, 0, sc, 0, py, -s, 0, c, pz); vars.push(R()); } } return { matrices: new Float32Array(mats), variation: new Float32Array(vars) }; } // 地形高度：在场景里名为 Terrain 的规则网格（Heightfield.Build 生成）上按三角形插值 terrainHeight() { const t = this.scene.objects.find((o) => o.name === 'Terrain' && o.mesh && o.mesh.cpu && o.mesh.cpu.position); this.terrain = t; if (!t) return () => 0; const pos = t.mesh.cpu.position, vc = t.mesh.header.vertexCount; const N = Math.round(Math.sqrt(vc)) - 1; // 每边段数 const x0 = pos[0], z0 = pos[2], step = (pos[(N) * 3] - x0) / N; const m = t.matrix; // 地形物体在原点，这里仍按平移处理 const Y = (ix, iz) => pos[(iz * (N + 1) + ix) * 3 + 1]; return (wx, wz) => { const gx = Math.min(Math.max((wx - m[12] - x0) / step, 0), N - 1e-4), gz = Math.min(Math.max((wz - m[14] - z0) / step, 0), N - 1e-4); const ix = Math.floor(gx), iz = Math.floor(gz), fx = gx - ix, fz = gz - iz; const h00 = Y(ix, iz), h10 = Y(ix + 1, iz), h01 = Y(ix, iz + 1), h11 = Y(ix + 1, iz + 1); // 与 Heightfield.Build 的三角形划分一致：(a, b, a+1) 与 (a+1, b, b+1) const y = fx + fz <= 1 ? h00 + fx * (h10 - h00) + fz * (h01 - h00) : h11 + (1 - fx) * (h01 - h11) + (1 - fz) * (h10 - h11); return y + m[13]; }; } } function lerp(a, b, t) { t = Math.min(Math.max(t, 0), 1); return a + (b - a) * t; } // .NET（Mono）System.Random(seed) 的 Knuth 减法生成器，按参考源码逐行移植 class DotNetRandom { constructor(seed) { const MBIG = 2147483647, MSEED = 161803398; const a = new Int32Array(56); const sub = seed === -2147483648 ? 2147483647 : Math.abs(seed); let mj = MSEED - sub; a[55] = mj; let mk = 1; for (let i = 1; i < 55; i++) { const ii = (21 * i) % 55; a[ii] = mk; mk = mj - mk; if (mk < 0) mk += MBIG; mj = a[ii]; } for (let k = 1; k < 5; k++) for (let i = 1; i < 56; i++) { a[i] -= a[1 + ((i + 30) % 55)]; if (a[i] < 0) a[i] += MBIG; } this.a = a; this.inext = 0; this.inextp = 21; this.MBIG = MBIG; } sample() { let n = this.inext, np = this.inextp; if (++n >= 56) n = 1; if (++np >= 56) np = 1; let r = this.a[n] - this.a[np]; if (r === this.MBIG) r--; if (r < 0) r += this.MBIG; this.a[n] = r; this.inext = n; this.inextp = np; return r; } nextDouble() { return this.sample() * (1 / this.MBIG); } } // Mathf.PerlinNoise 的近似（经典改进 Perlin 噪声，输出约 0..1）与 Heightfield.Fbm const PERM = [151, 160, 137, 91, 90, 15, 131, 13, 201, 95, 96, 53, 194, 233, 7, 225, 140, 36, 103, 30, 69, 142, 8, 99, 37, 240, 21, 10, 23, 190, 6, 148, 247, 120, 234, 75, 0, 26, 197, 62, 94, 252, 219, 203, 117, 35, 11, 32, 57, 177, 33, 88, 237, 149, 56, 87, 174, 20, 125, 136, 171, 168, 68, 175, 74, 165, 71, 134, 139, 48, 27, 166, 77, 146, 158, 231, 83, 111, 229, 122, 60, 211, 133, 230, 220, 105, 92, 41, 55, 46, 245, 40, 244, 102, 143, 54, 65, 25, 63, 161, 1, 216, 80, 73, 209, 76, 132, 187, 208, 89, 18, 169, 200, 196, 135, 130, 116, 188, 159, 86, 164, 100, 109, 198, 173, 186, 3, 64, 52, 217, 226, 250, 124, 123, 5, 202, 38, 147, 118, 126, 255, 82, 85, 212, 207, 206, 59, 227, 47, 16, 58, 17, 182, 189, 28, 42, 223, 183, 170, 213, 119, 248, 152, 2, 44, 154, 163, 70, 221, 153, 101, 155, 167, 43, 172, 9, 129, 22, 39, 253, 19, 98, 108, 110, 79, 113, 224, 232, 178, 185, 112, 104, 218, 246, 97, 228, 251, 34, 242, 193, 238, 210, 144, 12, 191, 179, 162, 241, 81, 51, 145, 235, 249, 14, 239, 107, 49, 192, 214, 31, 181, 199, 106, 157, 184, 84, 204, 176, 115, 121, 50, 45, 127, 4, 150, 254, 138, 236, 205, 93, 222, 114, 67, 29, 24, 72, 243, 141, 128, 195, 78, 66, 215, 61, 156, 180]; const P = new Int32Array(512); for (let i = 0; i < 512; i++) P[i] = PERM[i & 255]; function grad(h, x, y) { h &= 15; const u = h < 8 ? x : y, v = h < 4 ? y : h === 12 || h === 14 ? x : 0; return ((h & 1) === 0 ? u : -u) + ((h & 2) === 0 ? v : -v); } function perlin(x, y) { const X = Math.floor(x) & 255, Y = Math.floor(y) & 255; x -= Math.floor(x); y -= Math.floor(y); const fade = (t) => t * t * t * (t * (t * 6 - 15) + 10); const u = fade(x), v = fade(y); const A = P[X] + Y, B = P[X + 1] + Y; const l = (t, a, b) => a + t * (b - a); const n = l(v, l(u, grad(P[P[A]], x, y), grad(P[P[B]], x - 1, y)), l(u, grad(P[P[A + 1]], x, y - 1), grad(P[P[B + 1]], x - 1, y - 1))); return Math.min(Math.max((n + 1) * 0.5, 0), 1); } function fbm(x, z, octaves = 5) { let sum = 0, amp = 0.5, freq = 1, norm = 0; for (let i = 0; i < octaves; i++) { sum += perlin(x * freq + i * 17.13, z * freq - i * 9.71) * amp; norm += amp; amp *= 0.5; freq *= 2.03; } return sum / norm; }
顶点变形把距离淡出、风、交互三件事放在一个函数里，前向 Pass、阴影 Pass、深度 Pass 共用——所有 Pass 必须做相同的变形，否则影子和深度不跟着草动。
Assets/Cookbook/Ch20/Grass.shader（节选：deform）
// 返回变形后的世界坐标；fade 为距离淡出系数（1 = 完全可见） float3 GrassDeform(GrassAttributes v, out float fade) { float3 pivotWS = TransformObjectToWorld(float3(0, 0, 0)); // 这一丛草的根部中心 // 1) 距离淡出：先把整丛草“压矮”，再配合片元里的抖动裁剪 float camDist = distance(pivotWS, GetCameraPositionWS()); fade = saturate((_FadeEnd - camDist) / max(_FadeEnd - _FadeStart, 1e-3)); float3 posOS = v.positionOS.xyz; posOS.y *= lerp(0.3, 1.0, fade); float3 posWS = TransformObjectToWorld(posOS); float h = v.uv.y; // 0 根部 → 1 叶尖 float bendW = h * h; // 根部钉死、越往上越软（平方让弯曲更像弧线） // 2) 风：简化的行波（完整的风场做法见第 17 章）。_WindPhase 供静帧拍摄用 float phase = _WindPhase + _Time.y * _WindSpeed; float wave = sin(dot(pivotWS.xz, float2(0.35, 0.22)) + phase) * 0.5 + 0.5; wave += sin(dot(pivotWS.xz, float2(-1.3, 0.9)) + phase * 2.3) * 0.15; posWS.xz += normalize(_WindDir.xz) * (wave * _WindStrength * bendW); // 3) 交互：每个交互体把附近的草沿水平方向推开，并往下压 float2 push = 0; float press = 0; int count = (int)_Ch20InteractorCount; for (int k = 0; k < count; k++) { float4 it = _Ch20Interactors[k]; float2 d = posWS.xz - it.xz; float dist = length(d); float f = saturate(1.0 - dist / it.w); f = f * f * (3.0 - 2.0 * f); // smoothstep 形状，边缘不突变 f *= saturate(1.0 - (pivotWS.y - it.y) / it.w); // 交互体离地太高就不影响 push += d / max(dist, 1e-3) * f; press = max(press, f); } // 水平推开量不超过顶点离地高度；再按“到根部的距离不变”把顶点压低：y' = √(h² − |o|²) float hy = max(posWS.y - pivotWS.y, 0.0); float2 o = push * (_BendStrength * bendW); float ol = length(o); float maxO = hy * 0.95; o *= min(1.0, maxO / max(ol, 1e-4)); ol = min(ol, maxO); posWS.xz += o; posWS.y = pivotWS.y + sqrt(max(hy * hy - ol * ol, 0.0)) * (1.0 - press * _PressDown); return posWS; }
// 返回变形后的世界坐标；fade 为距离淡出系数（1 = 完全可见） // 顶点输入（GrassAttributes）：positionOS、normalOS、color、texcoord0 vec3 GrassDeform(out float fade) { vec3 pivotWS = GrassObjectToWorld(vec3(0, 0, 0)); // 这一丛草的根部中心 // 1) 距离淡出：先把整丛草“压矮”，再配合片元里的抖动裁剪 float camDist = distance(pivotWS, GetCameraPositionWS()); fade = saturate((_FadeEnd - camDist) / max(_FadeEnd - _FadeStart, 1e-3)); vec3 posOS = positionOS.xyz; posOS.y *= mix(0.3, 1.0, fade); vec3 posWS = GrassObjectToWorld(posOS); float h = texcoord0.y; // 0 根部 → 1 叶尖 float bendW = h * h; // 根部钉死、越往上越软（平方让弯曲更像弧线） // 2) 风：简化的行波（完整的风场做法见第 17 章）。_WindPhase 供静帧拍摄用 float phase = _WindPhase + _Time.y * _WindSpeed; float wave = sin(dot(pivotWS.xz, vec2(0.35, 0.22)) + phase) * 0.5 + 0.5; wave += sin(dot(pivotWS.xz, vec2(-1.3, 0.9)) + phase * 2.3) * 0.15; posWS.xz += normalize(_WindDir.xz) * (wave * _WindStrength * bendW); // 3) 交互：每个交互体把附近的草沿水平方向推开，并往下压 vec2 push = vec2(0.0); float press = 0.0; int count = int(_Ch20InteractorCount); for (int k = 0; k < count; k++) { vec4 it = _Ch20Interactors[k]; vec2 d = posWS.xz - it.xz; float dist = length(d); float f = saturate(1.0 - dist / it.w); f = f * f * (3.0 - 2.0 * f); // smoothstep 形状，边缘不突变 f *= saturate(1.0 - (pivotWS.y - it.y) / it.w); // 交互体离地太高就不影响 push += d / max(dist, 1e-3) * f; press = max(press, f); } // 水平推开量不超过顶点离地高度；再按“到根部的距离不变”把顶点压低：y' = √(h² − |o|²) float hy = max(posWS.y - pivotWS.y, 0.0); vec2 o = push * (_BendStrength * bendW); float ol = length(o); float maxO = hy * 0.95; o *= min(1.0, maxO / max(ol, 1e-4)); ol = min(ol, maxO); posWS.xz += o; posWS.y = pivotWS.y + sqrt(max(hy * hy - ol * ol, 0.0)) * (1.0 - press * _PressDown); return posWS; }
推开量直接加在 xz 上会让草叶变长（水平位移 + 原有高度），被压倒的草看起来像被拉长的面条。修正方法是保持“顶点到根部的距离”不变：顶点原来离地 h，水平推开 |o| 后，新的高度应为 ，并且 |o| 不能超过 h。弯曲权重用 uv.y²，根部几乎不动，越往上越软，叶片呈弧形倒下。
扩展：留下痕迹全局数组只能表达“此刻”的交互，物体离开后草立刻弹回。要让草地留下被踩过的痕迹并慢慢恢复，常见做法是维护一张覆盖角色周围区域、跟随角色移动的“交互 RT”：每帧把交互体画进去（例如写入推开方向和强度），再整体乘一个略小于 1 的系数让它逐渐衰减；草的 Shader 改为按世界坐标采样这张 RT。这需要第 25 章的 Renderer Feature 与 RTHandle 知识。
